D-Link DWM-312
High performance 3G/4G router - Perfect as a Backup failover WAN Solution
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
The D-Link DWM-312 4G LTE M2M Router is an easy-to-deploy, high performance 3G/4G router. It features a dedicated Fast Ethernet port and dual-SIM 4G LTE mobile broadband for maximum redundancy and flexibility for intense Machine to Machine applications. Powerful VPN tools and advanced remote management combined with ease of use make the DWM-312 ideal for both large-scale and individual deployments.
Connectivity Where You Need It Most
Easily connect to your high-speed 3G/4G LTE mobile connection with the DWM-312 4G LTE M2M Router, and enjoy fast downlink speeds of up to 150 Mbps1 and uplink speeds up to 50 Mbps1, giving you the speed you need for fast, responsive Internet access. Deploy it in a remote location to access IP cameras and systems remotely. The blazing fast LTE connection allows multiple users to access e-mail and stream music and video on the go. Configurable dual-SIM fallback provides reliability and flexibility in mixed network environments.
Reliable High Speed Virtual Private Networks
The DWM-312 4G LTE M2M Router's integrated VPN Client and Server support almost any VPN policy. The router's hardware engine can support and manage multiple VPN configurations. It supports IPSec, PPTP, L2TPv2, and GRE protocols in Server mode, and handles pass-through traffic as well. Advanced VPN configuration options include multiple encryption options, key management, negotiation modes, and VPN authentication using an internal user database.
Robust
The industrial grade casing means the DWM-312 provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case and wide operating temperature and humidity tolerance mean that the DWM-312 is ready for the most demanding M2M applications in virtually any environment. Wall mounts allow the DWM-312 to be mounted virtually anywhere for optimal connectivity. Flexible power input allows the router to be powered by any convenient power source.

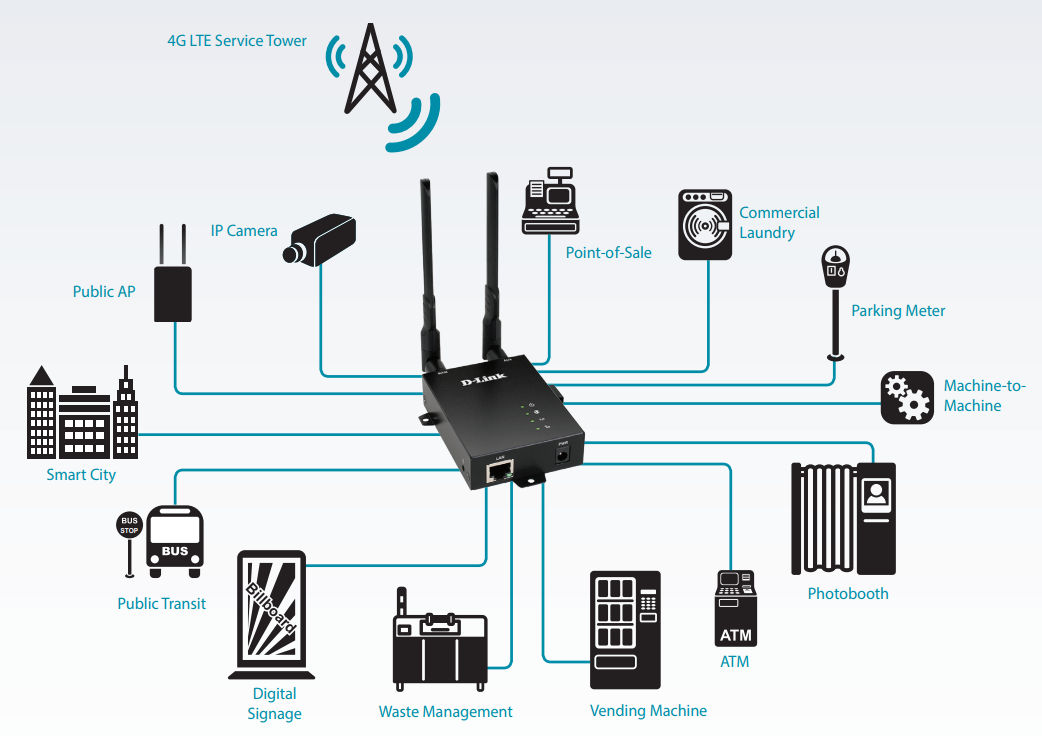

Sample Applications:
Features:
Connectivity
- Blazing fast LTE speeds up to 150 Mbps1
- Fast Ethernet for broad compatibility
- Dual-SIM for High Reliability
Simplicity
- Plug-and-Play with Ethernet interface
- Easy-to-use web interface for advanced cases
Advanced VPN and Management Features
- Supports IPSec, PPTP, L2TPv2, GRE tunnels
- AES encryption, Legacy DES and 3DES support
- Automated key management via IKE/ISAKMP
- IPSec NAT-Traversal
- XAUTH (Extended Authentication) for IPSec
Authentication
- D-Link D-View 7 and SNMP management support for rapid deployment
- TR-069 CPE WAN Management Protocol
Rugged and Flexible
- Zinc-plated steel case for durability
- Wide operating temperature and humidity tolerance
- Wall-mounts allow optimal placement
Technical Specifications:
| D-Link DWM-312 Specificatins | ||
|---|---|---|
| General | ||
| Mobile Network Support2 | SKU 1
|
SKU 4
|
| Data Throughput1 | LTE Throughput
|
|
| Device Interfaces |
|
|
| Standards |
|
|
| Advanced Features |
|
|
| Physical | ||
| LED Status Indicators |
|
|
| Power |
|
|
| Enclosure |
|
|
| Dimensions |
|
|
| Weight |
|
|
| Temperature |
|
|
| Humidity |
|
|
| Certifications |
|
|
1 Data rates are theoretical. Data transfer rate depends on network capacity, signal strength, and environmental factors.
2 Available frequencies and speeds vary and may not be available in all regions.

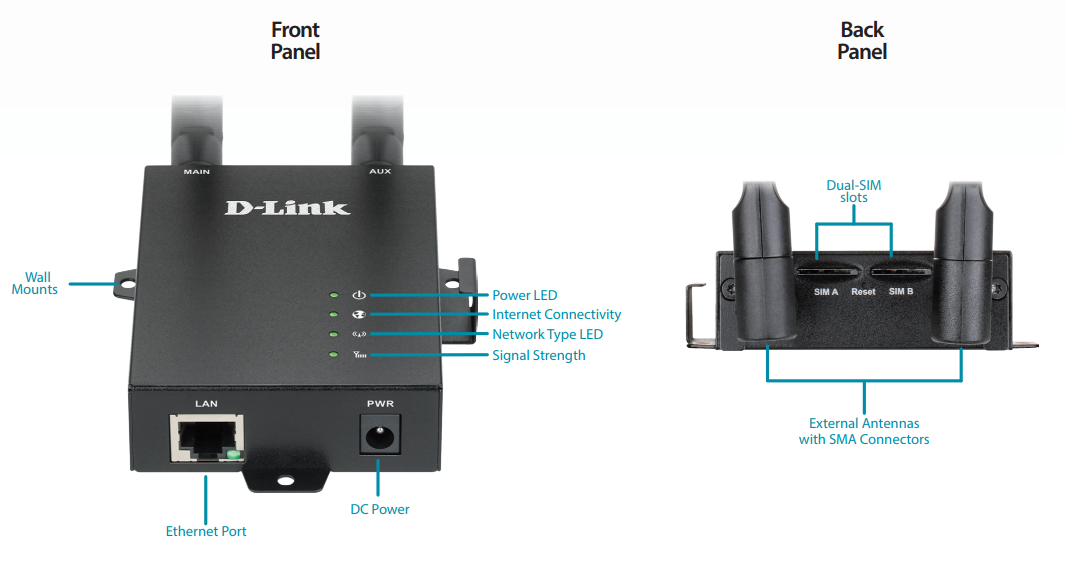

Product Views:
Documentation:
Download the D-Link DWM-312 Datasheet (PDF).
Download the How to Setup the DWM-312 in Bridge Mode Guide (PDF).
